5 Core Factors Affecting Custom Cast Iron Parts Pricing: A Buyer's Guide to Avoid Pitfalls

In the procurement of custom cast iron parts, price fluctuations often make it difficult for buyers to control accurately — for the same custom cast iron mechanical component, quotes from different cast iron manufacturers can differ by more than 30%.

In fact, the pricing of custom casting parts is not arbitrary. It is jointly determined by five core factors. This article will break down the impact logic of each factor, helping you understand pricing rules and avoid hidden charges.

I. Material Cost: The "Basic Anchor" of Pricing

Material is the core premise. Differences in composition and performance directly determine raw material costs, which is a primary source of price differences.

1. Material Type Dominates the Cost Benchmark

Common materials include Gray Cast Iron (HT200, HT250, HT300) and Ductile Iron (QT400, QT450, QT500).

• Price Trend: Ductile Iron > Gray Iron > Ordinary Gray Iron.

• Market Insight: In 2026, the raw material price of ductile iron is 20%-35% higher than gray iron because it requires alloying elements like magnesium and rare earths.

2. Performance Requirements Drive Premiums

• Example: Upgrading from QT450-10 to QT600-3 involves optimizing chemical ratios, increasing raw material loss by 8%-12%, and raising testing costs. The final unit price may rise by 15%-20%.

3. Purity and Environmental Standards

• Eco-friendly materials: Meeting RoHS or ultra-low emission standards requires high-quality scrap steel (low sulfur/phosphorus), increasing costs by 10%-15%.

• High-end Purity: For medical or machine tool applications (99.9% purity), additional purification processes significantly push up costs.

II. Mold Complexity: The One-Time Investment

Most custom parts require exclusive molds. The design and material of the mold determine the initial investment.

1. Structure Design Difficulty

• Simple Structure: Flat plates or cylinders (e.g., bases). There are no complex separation surfaces(About 1 ton), Mold cost: 1000-3000USD.

• Complex Structure: Deep cavities, special-shaped holes (e.g., engine blocks). Requires multi-component parting and slider core-pulling. Mold cost: 2000-10,000USD.

2. Mold Material and Service Life

3. Modification and Optimization

The larger the batch, the lower the fixed costs (equipment commissioning, labor) allocated to each product.

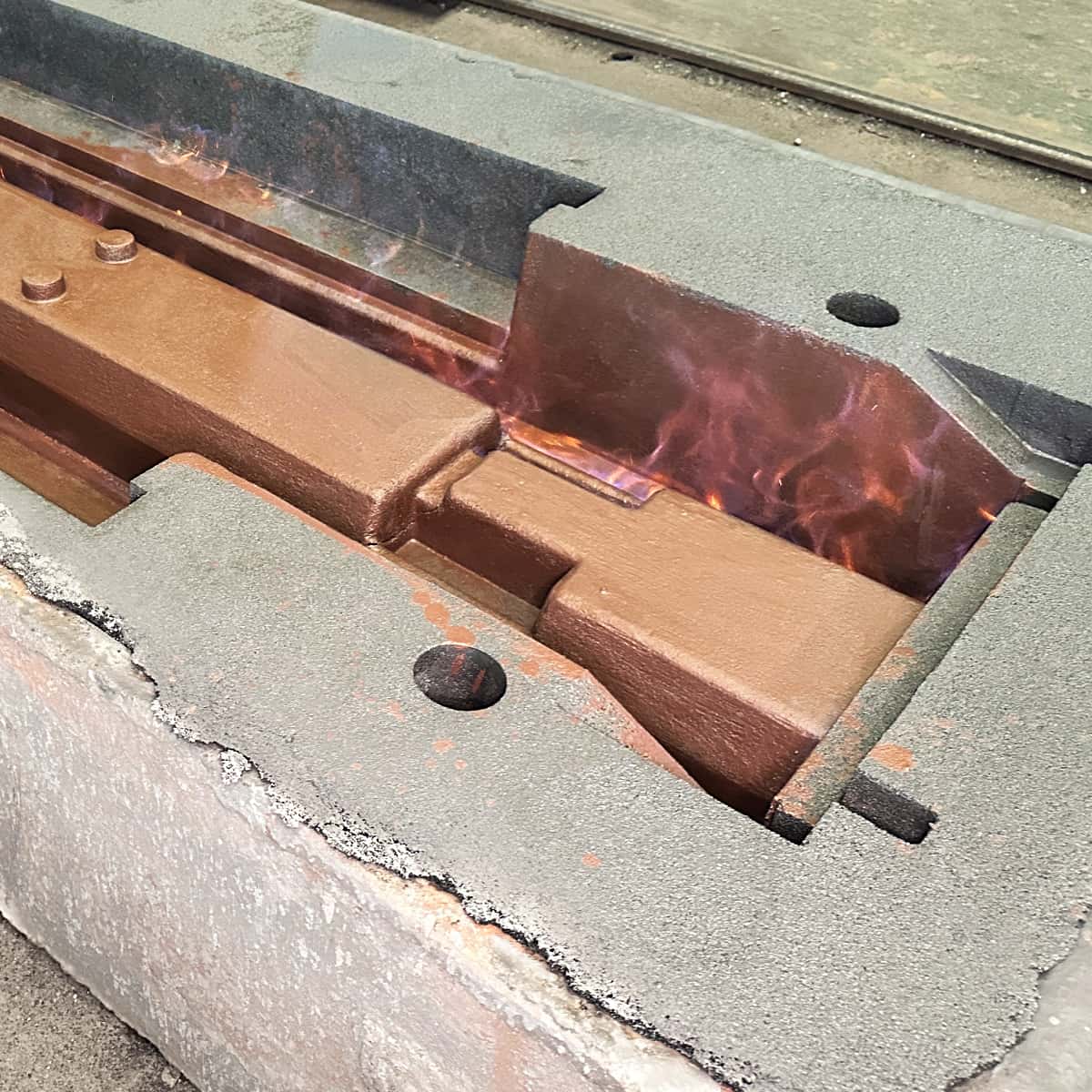

Resin Sand Process - Sand Shell↗️

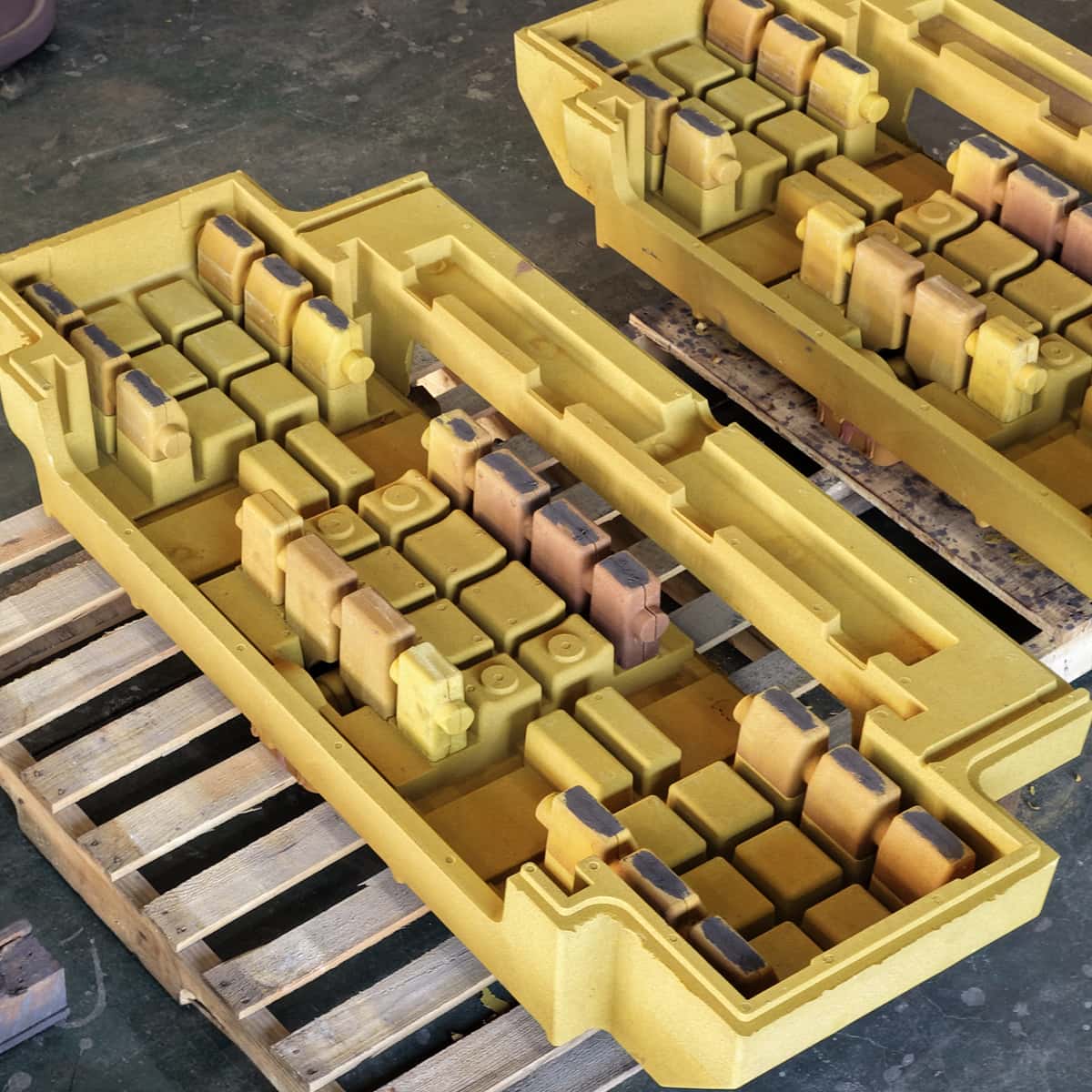

Coated Sand Process - Sand Shell↗️

III. Order Quantity: Key Variable for Cost Allocation

The larger the batch, the lower the fixed costs (equipment commissioning, labor) allocated to each product.

• Small Batch (10-500 pcs): High allocation of mold fees. Scrap loss rate can reach 20%-30%.

• Medium Batch (500-5,000 pcs): Unit price is typically 5%-15% lower than small batches as economies of scale appear.

• Large Batch (>5,000 pcs): Continuous production reduces raw material loss to under 10%. Tiered pricing discounts often apply.

💡 Pro Tip: Pay attention to the Minimum Order Quantity (MOQ). Orders below the MOQ (usually 10-100 pieces) may lead to significantly higher quotes or refusal to produce.

IV. Processing Allowance: Cost for Precision

Processing allowance is the metal cutting amount reserved after casting. Higher precision equals higher costs.

1. Core Impact Logic

• Small Allowance (1-2mm): For low-precision parts (brackets). Low material loss (5%-8%).

• Medium Allowance (2-5mm): For gears, pumps. Requires turning, milling, and drilling.

• Large Allowance (>5mm): For machine tool beds or precision instruments. High material loss (10%-20%) and expensive CNC time.

2. Tolerance Requirements

Stricter tolerances (e.g., ±0.01mm) require larger allowances to ensure the final dimensions are met. This can make the unit price 15%-25% higher than standard parts.

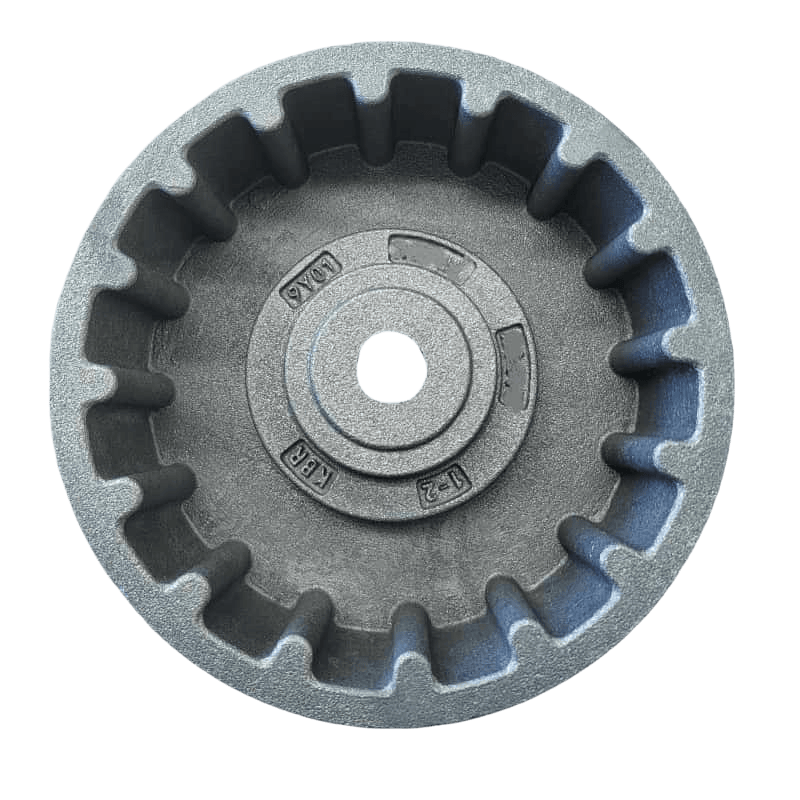

Rough Casting: Before Processing↗️

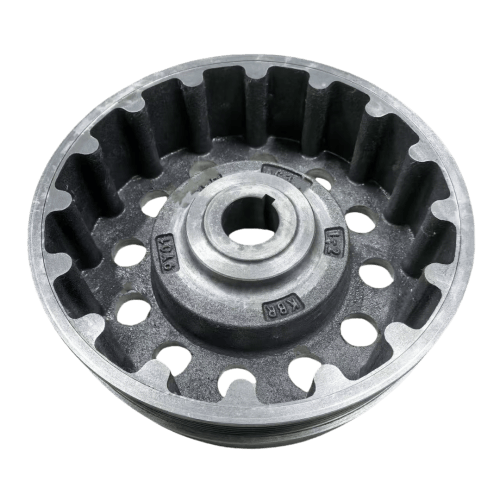

Finished Part: After Precision Machining↗️

Buying Guide: How to Optimize Your Costs

1. Avoid "Over-Customization": Don't specify high-end alloys or ±0.01mm precision if standard grades and ±0.5mm work for your application.

2. Integrate Batches: Combine several small-batch needs into one medium-batch order to reduce unit costs.

3. Confirm Mold Ownership: Ensure you own the mold so it can be reused for future orders without repeated fees.

4. Verify Quote Composition: Request a breakdown (Material, Mold, Machining, Surface Treatment) to avoid hidden charges.
